Conformational search for the global minimum

We've been working on conformational search for a while and are nearing the point were we have enough to write it up. This post is to get my head around the central point of the study.

Motivation
I'm interested in conformational search because I want to compute accurate reaction energies. Therefore I need to find the global energy minimum of both reactants and products (or something very close to them as explained below).

I need to make to make 2 choices: what conformational search method and what level of theory to use.

Establishing a benchmark set
The only way to make reasonably sure you find the global minimum is to do a systematic search with a relatively fine dihedral angle resolution. This can be painful, even with MMFF, but needs only to be done once. So what if it runs for 24 hours?

A dihedral scan doesn't sample ring conformations directly, so you may have to repeat the systematic search for several ring conformations.

The global energy minimum is obviously fully energy minimised so when I say "search" I mean that you are generating starting geometries that are then fully energy minimised. Also, if you are interested in reaction enthalpies, the global minimum is the structure with the lowest enthalpy and similarly for free energies.

Test your new conformational search method
Here's the only test that matters: run your new conformational search method N times and record how many of the N runs find the global minimum, i.e. the success rate. Do that for M different molecules and calculate an average success rate.

Let's say the average success rate is 90%. That tells me that if I use your method once there is 10% chance I that I won't find the global minimum, but if I use the method twice on the same molecule that chance drops to (0.1 x 0.1) 1% (assuming your method is stochastic).

The larger N and M are, the lower the uncertainty in the average success rates: 5 is no good, 10 is borderline, >15-20 is acceptable.

The success rate will depend on the number of rotatable bonds so it's important that the sizes of your M molecules are representative of the molecules you want to study.

Obviously, if your new method finds a lower energy value then there you need to go back and look the way you found your benchmark set.

Depending on the accuracy you can live with, you can loosen the success criteria to having found a structure within, say, 0.5 kcal/mol of the global minimum.

Benchmarking energy functions for conformational search
Most benchmark studies of this kind compare conformational energies and report RMSD or MAE values. The problem with this approach is that large errors for high energy conformers can lead to large RMSD values which are misleading for the purposes of finding global minima.

The only test of an energy function that really matters is whether the "true" global minimum structure is among the predicted structures and, if so, how close in energy it is to the "predicted" global minimum. Here the "true" global minimum is the global minimum predicted by your reference energy function that you trust.

Let's say you want to compare a semiempirical method (SQM) to a DFT method you trust and you can afford to do 100 geometry optimisations with DFT per molecule. The SQM is cheap enough that you can perform either a systematic search or a search using a conformational search method you have found reliable. Now you take the 100 (unique) lowest energy structures and use them as starting points for 100 DFT optimisations. The lowest energy structure found with DFT is your best guess for the "true" global minimum and the question is what is the minimum number of DFT optimisations you need to perform to find the "true" global minimum for each molecule? The lower the number, the better the SQM method for that molecule.

Let's say you do this for 5 molecules and the answer for SQM1 is 3, 1, 4, 10, and 3 while for SQM2 it is 4, 6, 4, 7, and 4. The I would argue that SQM2 is better because you need to perform 7 DFT optimisations to be 100% sure to find the "true" global minimum for all 5 molecules, compared to 10 DFT optimisations for SQM1.

Another metric would be to say that in practice I can only afford, say, 5 DFT optimisations and compute the energy relative to the "true" global minimum, e.g. 0.0, 0.0. 0.0, 0.5, and 0.0 kcal/mol for SQM1 and 0.0, 0.2, 0.0, 0.8, and 0.0 kcal/mol for SQM2. In this case you could argue that SQM1 is better since the maximum error is smaller. The best metric depends on your computational resources and what kind of error you can live with.

A need for a global minimum benchmark sets
Most, if not all, conformer benchmark sets that are currently available are made starting from  semirandomly chosen starting geometries, with no guarantee that the true global minimum is among the structures. What is really needed is a diverse set of molecular structures and total energies, obtained using trustworthy methods, that one is reasonably sure correspond to global minima.

As I mentioned above, the only "sure" way is to perform a systematic search but for large molecules this may be practically impossible for energy functions that you trust.

One option is to perform the systematic search using a cheaper method and then re-optimise the P lowest energy structures with the more expensive method. The danger here is that the global minimum on the expensive energy surface is not a minimum on the cheap energy surface or, more precisely, that none of the P starting geometries leads to the global minimum on the expensive surface. One way to test this is to start the stochastic search, which hopefully is so efficient that you can afford to use a trustworthy energy function, from the global minimum candidate you found.

Additionally, it is useful to use two different stochastic conformational search algorithms, such as Monte Carlo and genetic algorithm. If both method locate the same global minimum, then there is a good chance it truly is a global minimum, since it is very unlikely to find the global minimum by random chance.



This work is licensed under a Creative Commons Attribution 4.0

Why I support Plan S

1. The world spends $10 billion annually on scientific publishing.

2. Most scientific papers are only accessible with subscription, which means they are only accessible to academia and large companies in countries with a large per capita GDP. The papers are not accessible to the tax payers who paid for the research and the university subscriptions, nor to small and medium-sized companies.

3. The price of scientific publishing has been increasing at an unsustainable rate

source

4. The increased price is not due to increased costs on the side of the publishers, but rather to their aggressive negotiation tactics, leading to profit margins unheard of in any other business.

source

5. Pushback during price-negotiations with publishers in the EU has resulted in the publishers denying access to their journals in several countries, as a negotiation tactic. This includes access to past issues. We can't do anything about it because they own the papers. They own the papers because scientists signed away their copyright.

I believe this is an untenable situation. Who's going to do anything about it?

6. Publishers are obviously not going to do anything about it on their own accord. Any company would fight to preserve these profit margins, and they do.

7. Scientific societies are not going to do anything about it. Scientific societies derive the bulk of their income from subscriptions and are every bit as ruthless in their negotiations on subscription price as commercial publishers. For all intends-and-purposes they are publishers first, societies second.

8. By-and-large (one notable exception is PLoS) scientists haven’t done anything about it either. In my experience, scientists are first on foremost focussed on career advancement and competition for research funds and don't think about the (rising) cost of publishing.

9. Now it seems some EU funders are finally trying to do something about it with Plan S. Plan S is designed to bring about change in the current system.

This is why I fully support Plan S

If Twitter is any indication most scientists are not happy with Plan S. From what I can tell, the worries center mostly on not being able to publish in "good" journals and can be classified into two main categories:

None of the "good" journals will change
Unless something changes within the next 2-3 years researchers would not be able to publish work funded by some EU-based funding agencies in most, but not all, "good" journals.

So your colleagues who are not funded by some EU-based funding agencies publish in "good" journals and get all the recognition. As a result you may not get promoted or get new grants.

It's an unlikely scenario but if this does happen remember that your colleagues, who decide on your promotion or that you are competing against for funds, are in exactly the same boat.

Another worry is that people won't want to collaborate with you because you can't publish together in "good" journals. In my experience, this is not how scientific collaborations work, but if you do happen to meet such a potential collaborator my advice would be to avoid them at all cost.

All of the "good" journals will change
If all the "good" journals change to Gold OA in response to Plan S, then people without funding who can't pay the APC won't be able to publish in "good" journals.

This is also an unlikely scenario, but if it does happen society would spend considerably less on subscription fees that could be used to pay APCs. Notice that Plan S calls for a APC-cap, meaning that Plan S-friendly journal should be affordable. Remember that the current APCs are designed to maintain a very large profit margin for the publishers, so there is plenty of "fat" to trim. Finally, APCs are tied to volume. If the number of submissions increase the cost of each individual paper decreases.

The most likely scenario in my opinion
Plan S will be (sadly) softened a little. Some "good" journals will change to comply with the final version of Plan S, some won't, and some new journals will spring up. Some researchers won't be able to publish some of their work in some of their favorit "good" journals and will have to find a new favorit for some of their papers. Your colleagues are in the same boat, so it won't have much effect on either career advancements nor funding success rate. The world of scientific publishing may become a little bit less ridiculous but not thanks to us scientists.

I view Plan S as a signal to the publishers for the next round of negotiations. We pay the bills and this is how we would like it. It's not an unreasonable  position at all. Something does not need to change. Publisher will fight this tooth and nail and their main argument will be that scientists say it will be bad for science. Sadly, many scientists are saying just that. However, the main worry of the publishers is their profit margin and the main worry of the scientists is, I believe, their careers. The only thing they have in common is a fear of change.

This work is licensed under a Creative Commons Attribution 4.0

Reviews of Solvation Energy Predictions Using The SMD Solvation Method and Semiempirical Electronic Structure Methods

Really late posting this. The paper is already out at JCP. Here are the reviews for the record.

Reviewer #1 Evaluations:
Recommendation: Revision
New Potential Energy Surface: No

Reviewer #1 (Comments to the Author):

In this contribution, the authors report a set of systematic analyses of semi-empirical (NDDO and DFTB) methods combined with continuum solvation models (COSMO and SMD) for the description of solvation free energies of well-documented benchmark cases (the MNSOL dataset). They found that the performance of NDDO and DFTB continuum solvation models can be substantially improved when the atomic radii are optimized, and that the results are most sensitive to the radii of HCNO. Another interesting observation is that the optimized radii have a considerable degree of transferability to other solvents.

Since an efficient computation of solvation free energies and related quantities (e.g., pKa values) is valuable in many chemical and biological applications, the results of this study are of considerable interest to the computational chemistry community.

In the current form, the ms can benefit from further discussion of several points:

1. The authors chose to optimize the atomic radii based entirely on element type (e.g., HCNOS). In the literature, many solvation models either further consider atom types (e.g., UAKS) or atomic charge distribution (based on either atomic point charges or charge density); in many cases, a higher degree of accuracy appears to be obtained. It would be useful to further clarify the principle behind the current optimization and the expected level of accuracy; for example, to what degree should we expect the same set of radii to work well for both neutral and ionic (especially anionic) species?
2. Although it is well known - it is useful to explicitly point out that the experimental values for neutral and charged species have different magnitudes of errors.
3. It would be informative to further dissect/discuss the physical origins for the errors of NDDO/DFTB continuum solvation models. For example, are the larger errors (as compared to, for example, HF based calculations) due primarily to the less reliable description of the solute charge density (e.g., multipole moments) or solute polarizability? Discussion along this line might be relevant to the transferability of the optimized model to non-aqueous solvents.

4. Cases with very large errors deserve further analysis/discussion - for example, some neutral solutes apparently have very large errors at HF, NDDO and DFTB levels - as much as 20 or even 30 kcal/mol! What are these molecules? Are the same set of molecules problematic for all methods? What is the physical origin for these large errors?


Reviewer #2 Evaluations:
Recommendation: Revision
New Potential Energy Surface: No

Reviewer #2 (Comments to the Author):

In this paper, the authors make the case for efficient solvation models in
fast electronic structure methods (currently heavily utilized for high-throughput
screening approaches). They extend an implementation of PM6 in the Gamess
programm to account for d orbitals. The SMD and COSMO continuum models in combination with
various semi-empirical NDDO and also DFT tight-binding approaches is considered.
Their analysis clearly highlights deficiencies of the semi-empiricial approaches
compared to HF/DFT. The authors then proceed to propose a remedy (changing the
radii for H, C, O, N, and S). Although this change was driven by data on aqueous
solvation energies, the authors find that other polar solvents (DMSO, CH3CN, CH3OH)
are also improved, which is a sign of transferability of this simple fix.
The prediction of pKa data, as an important application field, concludes the
results section. The paper is clearly written, however, it raises questions that
should be addressed in a revision:
1) Table 2 shows very (too) small Coulomb radii for H and on page 6 this is commented on.
The authors note that for radii smaller than 0.6 A the proton moved into the solvent.
However, no further analysis if provided. I assume that this is due to an increased outlying
charge and this outlying charge shoud be quantified. Apparently, some error compensation
is in operation. This also relates to the statement 'error for the ions is considerably larger
than for neutral molecules' on page 5. Error compensation also raises a concern about
transferability that the authors must address.
2) The authors should also review their list of references (I assume that the first author's
surname in Ref. 1 is misspelled, the abbreviations of journals are not in JCP style, Ref. 34
appears to lack a journal title, Ref. 16 lacks author names ...).
3) Moreover, figures 1-3 lack a label for the y-axis, figure 4 lacks units
on the y-axis.
4) Few typos need also be removed (see, e.g., "mainly only" -> "mainly on"
on page 2).


This work is licensed under a Creative Commons Attribution 4.0

Assigning bond orders

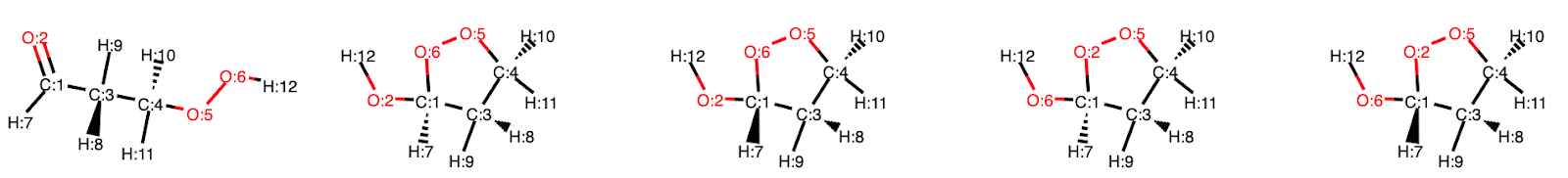

This last week I've been working off and on changing the way xyz2mol.py assigns bond orders. xyx2mol is an implementation of this paper and works by first assigning connectivity and then increasing the bond order between atoms with unsatisfied valences. As the article points out the outcome depends on the order you do it in.

For example, if you start by adding a double bond between atoms 6 and 7 in biphenyl (1), you don't get the right result. The authors propose to start by adding double bonds between atoms with the lowest connectivity, which works fine for biphenyl.

But Mads found an example (2) where that doesn't work. According to the rules you would add double bonds between 1-7, 3-4, and 8-9, which is not correct.

I solved this by finding the longest path of atoms unsatisfied valences (7-1-2-3-4-5-8-9) and then adding double bonds between alternate pairs. If there is an uneven number of such atoms you get different results depending on where you start, but that could probably be fixed by some ad-hoc rules. However, this approach fails for benzoquinone (3), where the longest path is 7-6-1-2-3-4-5. (Finding the longest path can also become intractable for many atoms)

The approach I have settled on so far, finds the maximum number of non-consecutive double bonds. So if you have 6 or 7 atoms with unsatisfied valence you can have a maximum of 3 non-consecutive double bonds. I find this combination by generating all combinations of three bonds and determining the one with the most different atoms (e.g. [(1,2), (3,4)] is better than  [(1,2), (2,3)]. This doesn't scale all that well when you're trying to place 10 or more double bonds, so if you have a better idea I'm all ears.

3.09.2018 update. Thanks to Geoff's suggestion the code now runs considerably faster

Assigning bond orders, whether in an aromatic structure or not, is a specific case of the maximal weighted matching graph algorithm. You can certainly come up with fast heuristics for certain kinds of structures, but IIRC scaling is ~N^3 in general

— Geoff Hutchison (@ghutchis) September 2, 2018

This work is licensed under a Creative Commons Attribution 3.0 Unported License.

Comparison of genetic algorithm and Monte Carlo tree search for logP optimisation

What have I done?
1. Inspired by this and this study I have implemented graph-based crossover and mutation algorithms and hooked then up to a basic genetic algorithm (GA). "Graph-based" means I'm modifying the molecules by changing/adding atoms and bonds (using RDKit) rather than changing SMILES strings.
2. I hooked up my probabilistic atom-adder to a rudimentary Monte Carlo tree search (MCTS) algorithm I found on GitHub. I modified it to have leaf parallelisation, i.e. 25 random leafs a made instead of one.
3. The score to be optimised is the penalised logP (plogP) value using here and here.

Size matters
All other things being equal, the plogP score increases linearly with molecular size so this must be considered when comparing to other studies. I want to compare to this study where the maximum SMILES length is capped at about 80 according to their code. The average size of the molecules in Figure 2 of that paper is 39.15 ± 3.50 atoms. So for GA I rejected a molecule if the number of atoms was larger than a number sampled from a normal distribution with mean 39.15 and a standard deviation of 3.50. Similarly for MCTS I stopped the rollout using the same criterion.

The results
The following results are the maximum plogP score averaged over 10 runs. In the MCTS case I ran each run for 40 iterations, while for the GA I my population size was 20 and I ran for 50 generations. In each case this works out to be 1000 plogP evaluations per run. The initial mating pool is 20 random molecules sampled from the first 1000 molecules in the ZINC data set used in this study by Yang et al.. Similarly, probabilities used in the atom-adder comes from an analysis of these 1000 molecules. The mean plogP score for this set is 0.2 and the maximum value is 3.6.

The average maximum plogP for GA is 6.8 ± 0.7 and 7.4 ± 0.9 using a 50% and 1% mutation rate. For comparison the best average maximum value in the Yang et al study is 5.6 ± 0.5, obtained using MCTS and close to 20,000 plogP evaluations. The latter took 8 hours, while the GA calculations took 30 seconds each on my laptop.

For MCTS the average maximum plogP value is 3.3 ± 0.7, which is significantly lower than the lowest value in the Yang et al. study, 4.9 ± 0.4. The most likely explanation is the atom adder makes relatively few benzene rings (as discussed previously), which, together with Cl atoms, is the defining structural feature of  the high scoring molecules found by Yang et al. Indeed, if you increase the probability of generating C=C-C containing rings (from 63% to 80%) then the average maximum plogP value increases to  4.4 ± 0.4. If you increase the plogP evaluations to 5000 (the value used by Yang et al. to obtain the 4.9 ± 0.4 value) then the value increases to 5.0 ± 0.4.  The latter run takes about 9 min, compared to 2 hrs in the Yang et al. study.

Conclusion

GA is very good at maximising plogP values and very efficient. For this particular property GA completely outperforms MCTS.

You can find the code I used here

This work is licensed under a Creative Commons Attribution 3.0 Unported License.

Making random molecules one atom at a time

I'm trying to make my own version of ChemTS, which uses a recurrent neural network to generate molecules (SMILES string) and Monte Carlo tree search to optimise their properties. This post is about some very recent preliminary (i.e. possibly wrong) results on the molecule generation part. I decided to write my own code rather than use the RNN because I thought I could whip up some code using RDKit in no time. But, as usual, the problem turned out to be harder than expected so I ended spending quite a bit of time to get to this point.

The main idea
The main idea is to use RDKits reaction SMARTS to add one atom at a time and selecting the reactions SMARTS based on a probabilistic analysis of a representative set of molecules (here I use the first 1000 molecules in the ZINC data set that Tsuda and coworkers used for ChemTS). I use three kinds of reaction SMARTS (shown here for single bonds):

So, for example, 63% of the atoms in the data set are ring atoms so I choose ring creation (if there are no suitable rings to work with) or ring insertion 63% of the time. The most common 3-atom combination in rings is C=C-C, which accounts for 45% of all 3-atom combinations in rings, so I choose that 45% of the time, and similarly for the 34 other combinations I found in the data set. The site of insertion/creation (in this case a C-C bond) is chosen randomly. I stop adding to a particular ring if it is aromatic or is 6-membered.

Similarly, for addition the most common bond involving at least one non-ring atom is C-C, so I choose that more often. I played around with a more specific bonding analysis, e.g. there probabilities for C=C-C vs C-C-C, but if one gets too specific then the most probable bonding patters are often not found in the early stages of molecule growth and the growth process effectively stops.

The average molecular size in the data set is 23.2±4.4 atoms, so I stop growing the molecule when the size exceeds a random value sampled from a normal distribution with mean 23.2 and standard deviation 4.4.

An analysis of 1000 generated molecules
To get an idea of how well this works I generated 1000 molecules using ethane as the "seed" molecule and performed the same statistical analysis on the new set. It takes about a 90 seconds to generate the set, which is about 600 molecules a minute. For comparison the RNN can generate about 40 molecules a minute according to the ChemTS paper, because most of the suggested SMILES are either invalid or lead to "invalid" molecules as judged by RDKit.

The average molecular size in the new data set is 24.2±4.6 atoms, which is pretty close to the target. The discrepancy is probably due to the fact that if I expand some 3- or 4- membered rings to 5 membered rings after the growth stops. There are 2612 rings compared to 2753 in the reference set and 61% of the atoms are in rings, which also is close to 63% in the reference set. 41% of the 3-atom combinations in rings is C=C-C, which is reasonably close to the 45% in the reference set. I think the difference is due to the fact that at least one of the two carbons must be secondary to "accept" the double bond, and if such a bonding pattern is not always be present then no "=C-" atom will be added. It is thus a little bit more likely that a "-C-" atom will be "accepted", compared to a "=C-" atom.

A feature, not a bug?
Not surprisingly, there are bigger differences for the larger scale features not specifically encoded in the rules such as the type of ring.

Ring	reference	generated	gen 80%
[*]1-[*]-[*]-1	57	92	49
[*]1-[*]=[*]-1	0	12	31
[*]1-[*]-[*]-[*]-1	17	37	8
[*]1=[*]-[*]-[*]-1	0	8	15
[*]1=[*]-[*]=[*]-1	0	0	0
[*]1-[*]-[*]-[*]-[*]-1	280	11	0
[*]1=[*]-[*]-[*]-[*]-1	120	345	394
[*]1=[*]-[*]=[*]-[*]-1	470	198	317
[*]1-[*]-[*]-[*]-[*]-[*]-1	409	45	7
[*]1=[*]-[*]-[*]-[*]-[*]-1	77	337	87
[*]1=[*]-[*]=[*]-[*]-[*]-1	100	627	447
[*]1=[*]-[*]-[*]=[*]-[*]-1	7	393	255
[*]1=[*]-[*]=[*]-[*]=[*]-1	1206	507	877
Total	2743	2612	2487

For example, there are many fewer benzene-type rings as well as cyclopentane and cyclohexane type rings, while there are of most of the other types. The reason, of course, it that the molecules in the ZINC data set are not made by randomly adding atoms, but by assembling larger functional groups such as aliphatic and aromatic rings. So the average ring composition does not reflect the most likely ring compositions.

It is possible to scale the probabilities to skew the results towards one or the other ring-type. For example in the last column I have scaled the probabilities such that the probability X=Z-Y is 80% rather than the 62% in the reference set.

But since I intend to use the method to explore chemical space and use a optimisation algorithm to guide the exploration it might be an advantage that the algorithm suggests a broad range of ring architectures.

Lots left to be done
The codes I wrote can be found here and here. It's messy proto-type code and not finished. For one thing it doesn't generate fused rings yet, which is quite a limitation. I'm sure I've also missed other pretty obvious things and any feedback is appreciated.



This work is licensed under a Creative Commons Attribution 3.0 Unported License.

Comparing a Monte Carlo tree search and a genetic algorithm for conformational search

I've been playing around with this Monte Carlo tree search (MCTS) code (if you need a short intro to MCTS click here). I want to learn how to use MCTS to optimise molecular properties so to get started I modified the code to minimise a very simple energy function that mimics a torsional potential.
$$E = \sum_i 1 + \cos(\phi_i) + \cos(3\phi_i)$$ It seems to work OK but in order to get some point of comparison for the efficiency I tested it against a genetic algorithm (GA). You can find the codes here and here.

More specifically, I tested for a function with 10-dihedral angles, each with three possible values (180.0, 60.0, and -60.0), meaning there are 59,049 possible combinations (i.e. "conformations"). Each 180 and ±60 angle contributes -1 and 0.5 to the energy so the global minimum is one in which all angles are 180 and has an energy of -10.

If you simply make 10 x 1000 random combinations of 10-dihedral angles and average the lowest energy found among each set of 1000 you get 0.35. This makes sense because the highest energy conformer has an energy of +5, but there more ways to make it, so the average should be around 0.

Using 1000 iterations (i.e. 1000 energy evaluation) the MCTS finds the global minimum 0 out of 10 times and gives an average energy of -7.6. In 4 cases the energy is -8.5 (i.e. it misses one dihedral) and -7 in the rest (i.e. it misses 2 dihedrals).

For comparison, the GA finds the global minimum 0 out of 10 times and gives an average energy of -6.85. In 2 cases the energy is -8.5, in 5 cases the energy is -7, and in the rest, -5.5. I use a population size of 50 and 20 generations, which also requires 1000 energy evaluations, and a mutation rate of 0.01. Using a population size of 20 and 50 generations results in an average energy of -6.7.

I'm actually a bit surprised that MCTS out-performs GA because I don't recall seeing MCTS being used for conformational search. One possible reason is that it's hard to see how to parallelise MCTS since energy evaluations are done sequentially, while they can be done in parallel for each generation for GA.

I did try running 10 100-iteration MCTSs, which could be done in parallel, and 1 of them managed to find a -8.5 conformer so maybe that's a possibility. Another way would to do a complete expansion of a terminal node and do the three energy evaluations in parallel. This might also be a better search strategy in any case. I am not quite sure how to implement this yet (recursion is not my strong suit) so any suggestions are welcome.

Also the reward function could probably be optimised. Currently it is simply 1 if the energy is lower than the current "global" minimum and 0 otherwise. Suggestions for other functions are most welcome.
